Museum digitization system:

Integrated object panorama hardware and software solution. Create panorama results for your museum objects quickly and easily.

Object panorama is unique type of photography, in which the object is captured from many angles. These pictures are added together in a unified online experience that gives you the chance to see every single angle of the object.*

• Modular design that will satisfy your requirements, easily mount 4 or more cameras. Dismantled, moved and mounted in few hours only.
• Supports all major camera manufacturers**!
• Create a museum object panorama quickly; all connected cameras capture the subject at the same time.

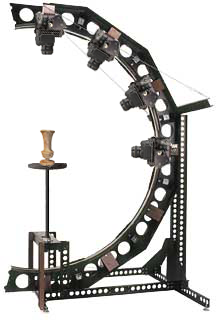

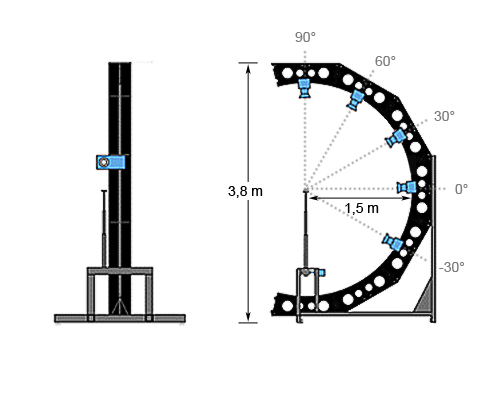

Witikon Panorama MDS

• Sturdy industrial design.
• Variable and configurable thanks to modular design.
• Mount from one to four cameras; and more!
• Turntable with fine step and control. More then 0.01° accuracy. More than 1000 positions per 360° turn.
• Fluid motion without any disturbance.
• Supports fixed mounting of any camera with standard tripod mount.
• Easy implementation in existing photo studio environments, easy to create your own.
• Options for translucent/transparent turntable surface.

Technical Specifications

PanoramaMDS

Captured objects

PanoramaCapture (minimal requirements)

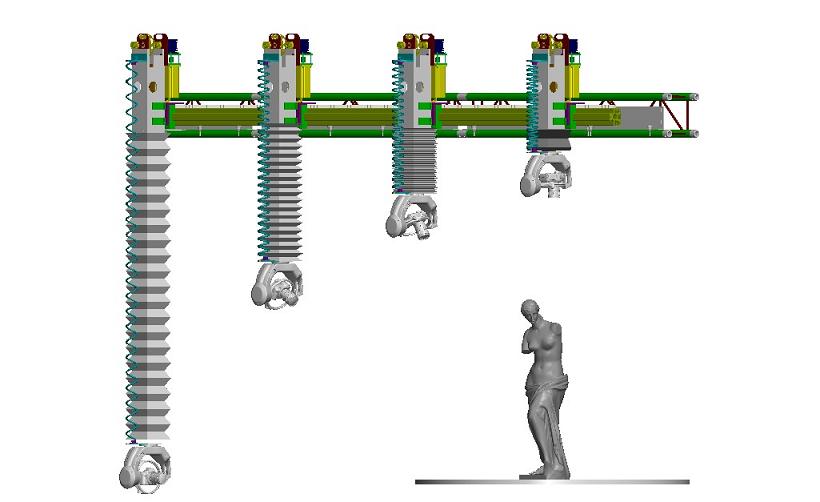

Witikon MDS 4500

• Next-gen industrial design for photography.
• Industry grade rigidity and reliability.
• Highly variabile camera setups for maximum creativity.
• Turntable with fine step and control. More then 0.01° accuracy. More than 1000 positions per 360° turn.
• Parallel shooting for maximum efficency.
• Fully automated cart movement, 3-axis camera movement, camera zoom, focus and control.
• Remotely controled lighting setups.
• Support for hanging objects thanks to dual synchronized turning platform.

Technical Specifications

Witikon MDS4500

Captured objects

PanoramaCapture (minimal requirements)

• * depending on setup of device
• ** full software support only for Canon EOS cameras yet, LiveView preferred

PanoramaCapture

• Software solution for creating object panorama with PanoramaMDS.
• Deep integration support with modular design (easily connect capture profiles repository or external management software).
• Supports creation and modification of capture profiles, setup of horizontal angles and steps.

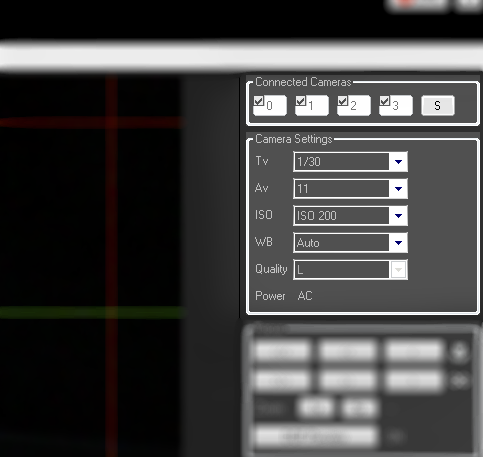

• Full control of all connected cameras, control exposure, shutter time, sensitivity.
•
  • Live view automatic focus with option for manual control.

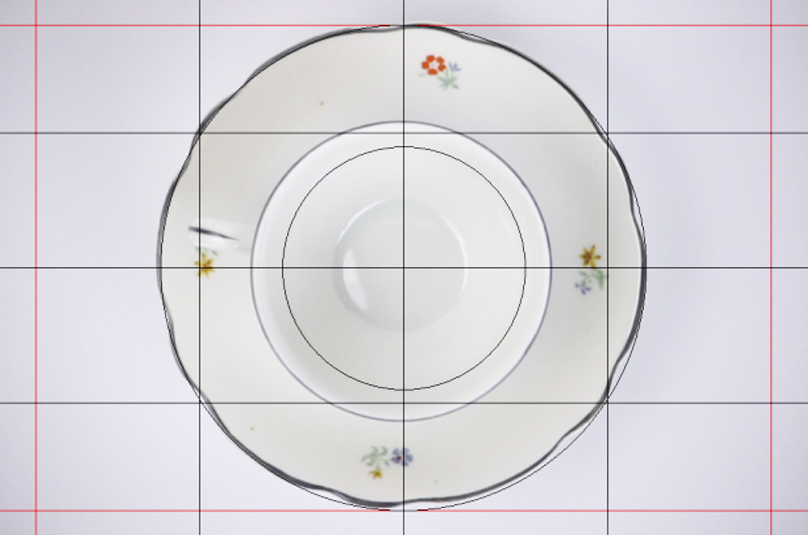

  • Make your own guidelines or borders that are essential for consistent result and you will be sure that the object will never leave the view.

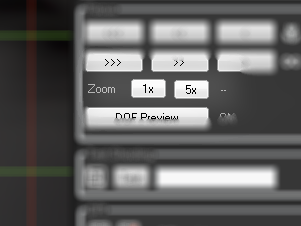

• 5x real time zoom for fine correction.

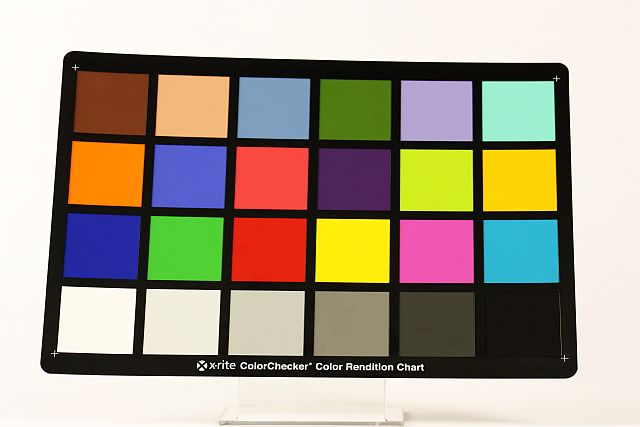

• Set white balance and capture color sheets directly from PanoramaCapture.

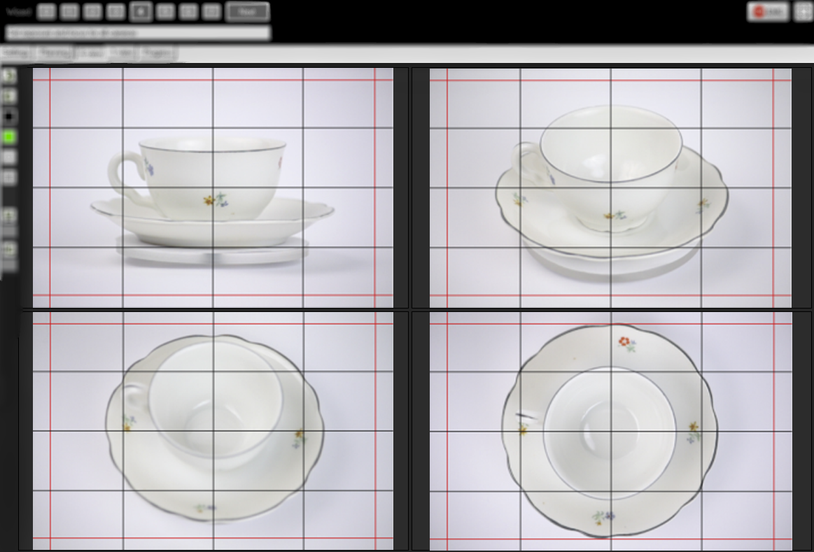

• See real-time view from all connected cameras on one screen. (Canon EOS with LiveView required)

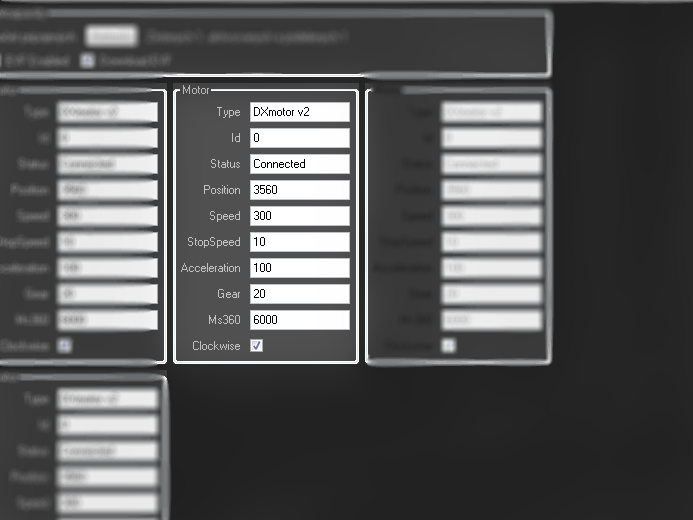

• Control the movement of the turntable, acceleration, deceleration and the top speed.
• Stop the capture process at any time, resume again just as easily without need of doing anything again.
• Supports creation of images with extended depth field. (View example)
• Optional wizard that will guide you through the whole process.
• Mature stable product used in production.
• Ability to automatically measure resolution of the captured object.
• Thorough statistics of every step, timestamp, optional operator log-in.
• Output of all images (RAW/+JPEG, configurable), fault protection data (check-sum).
• Export to folder structure + XML, database support.
• Use built in variables to create configurable filename patterns (angle, date, speed, user input number, reading from file or database).
